BSIDE A1X Digital Multimeter

Original price was: $65.98.Current price is: $29.99.

BSIDE A1X Digital Multimeter

Our product is the same as these pictures. If you do not like what you get, we can give you a refund depending on the situation

CE Certificate No: A2110019-C01-R01

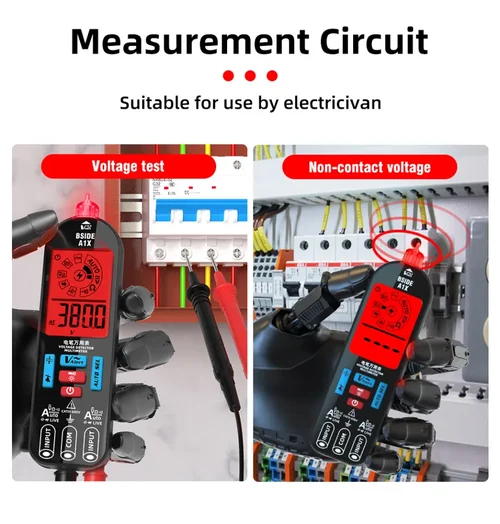

  • [Professional Voltage Tester]: The rechargeable multimeter can also be used as a professional non-contact voltage tester. The sensitivity of the ac volt tester is adjustable.

undefined

  • [High Efficiency]: Activating capacitance, diode, v-alert, or auto mode measurement under any function design makes testing more convenient, and greatly improves your efficiency.

undefined

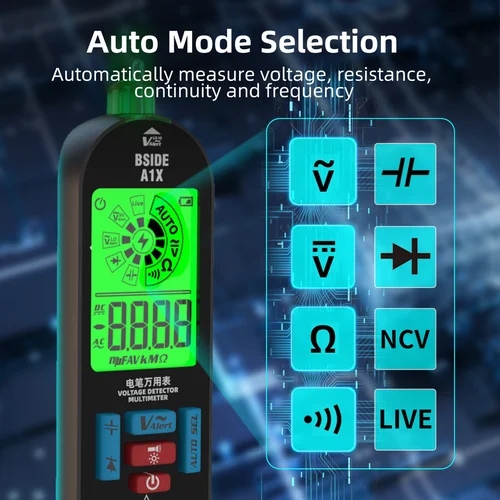

  • [Smart Mode]: This smart multimeter tester can automatically measure AC and DC voltage, resistance, and continuity with the best resolution. All of these functions measurement can be done manually as well.

undefined

undefined

undefined

  • [Red and Green Backlight]: The smart digital multimeter has a high-resolution LCD screen, with a red and green backlight, greatly enhancing the reading experience.

undefined

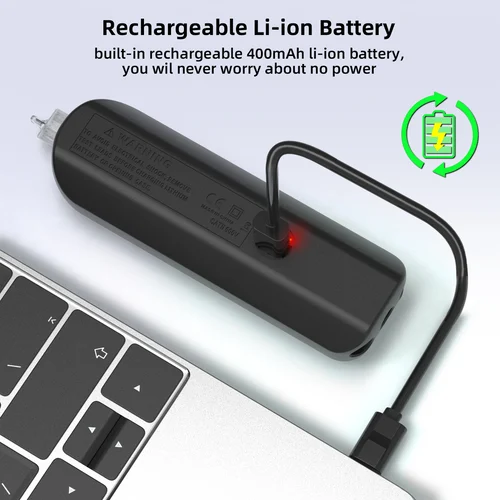

  • [Rechargeable]: The intelligent multimeter comes with a rechargeable battery & charging cable, so you will never worry about power problems.

undefined

undefined

undefined

undefined
undefined

undefined

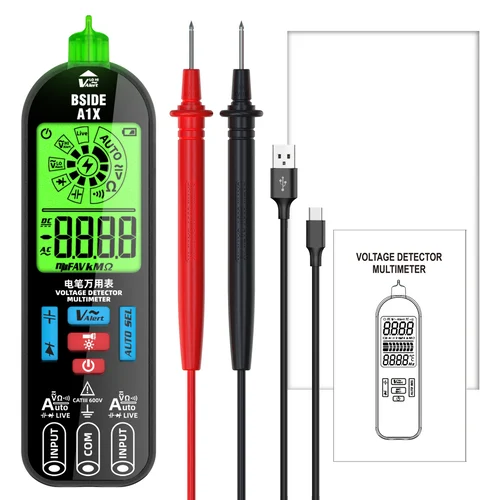

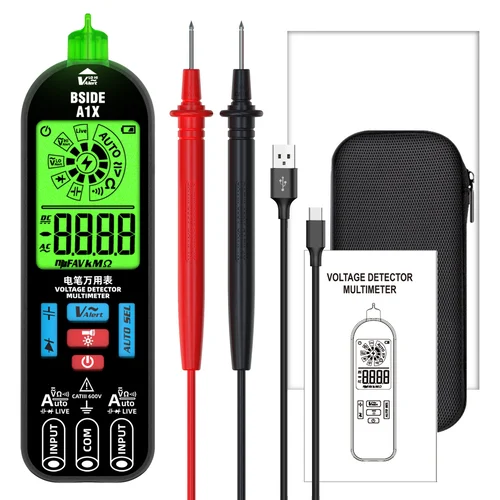

Package Includes:
1 x Smart Multimeter
1 x Test Leads
1 x Charging Cable
1 x Rechargeable Battery
1 x User Manual

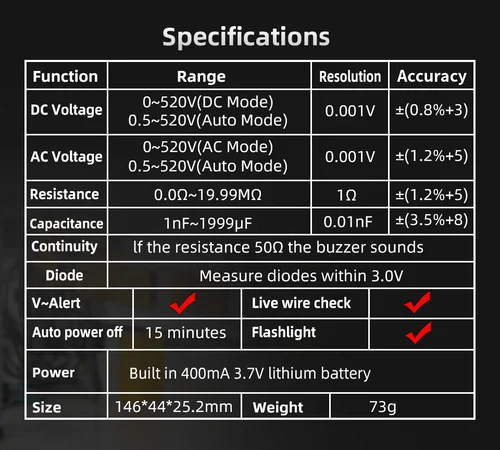

Specifications:
MAX Display: 2000 counts
DC Voltage:
0V-1.999V 0.001V ±(0.8%+3); 2V-19.99V 0.01V ±(0.8%+3); 20V-199.9V 0.1V ±(0.8%+3); 200V-520V 1V ±(1%+5)
AC Voltage:
0.005V-1.999V 0.001V ±(0.8%+3); 2V-19.99V 0.01V ±(0.8%+3); 20V-199.9V 0.1V ±(0.8%+3); 200V-520V 1V ±(1%+5)
Resistance:
0-1999Ω 1Ω ±(1.2%+5); 2KΩ-19.99KΩ 0.01KΩ ±(1.2%+3); 20KΩ-199.9KΩ 0.1KΩ ±(1.2%+3);
200KΩ-1999KΩ 1KΩ ±(1.2%+3); 2MΩ-19.99MΩ 0.01MΩ ±(1.5%+5)
Capacitance:
1nF-19.99nF 0.01nF ±(3.5%+8); 10nF-199.9nF 0.1nF ±(3.5%+8); 200nF-1999nF 1nF ±(3.5%+8);
2μF-19.99μF 0.01μF ±(4.5%+10); 20μF-199.9μF 0.1μF ±(4.5%+10); 200μF-1999μF 1μF ±(4.5%+10)
V-Alert (non-contact voltage detection): High and low mode
Live Wire Check: Yes
Continuity: If the resistance is less than 50Ω, the beeper sounds
Diode: Measure diodes within 3V
Power: 3.7V (built-in, rechargeable)
Size: 146*44*25.2mm
