Remote Control Duplicator

NOW YOU CAN HAVE MULTIPLE KEY ACCESS IN ONE!

You can now make a copy of any key in a few seconds through simple steps and be prepared for any possible button breaks, definitely fits well with your daily usage like a dream.

It is handy keychain-sized attaches to your sets of keys for portability. Also, no need to worry about privacy and safety. It adopts one-to-one key copy technology and the password of each key is saved individually.

• WIRELESS REMOTE-CONTROL DUPLICATOR: Duplicate existing remote controllers for cars, car sunroofs, garage doors, gate doors, heating systems, home automation e.g. lighting and etc.

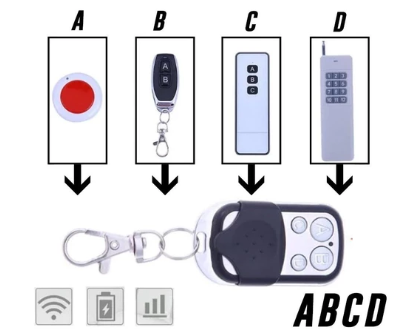

• ABCD FOUR BUTTONS: respectively copy four different types of chips and so operate four different types of facilities.

• FIXED FREQUENCY: works for 315 / 433MHz fixed codes and learning codes; transmit distance is 50-100m (open space)

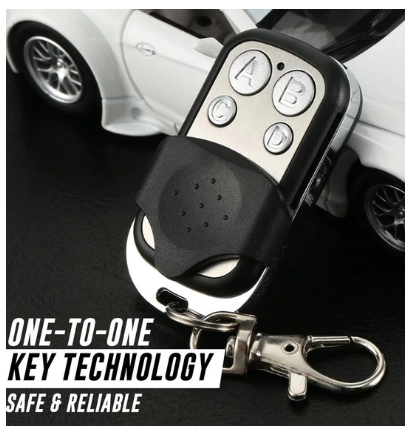

• ONE-TO-ONE KEY COPY TECHNOLOGY: The password of each key is saved individually and is reliable.

• PORTABLE HUMANIZED DESIGN: Handy key chain size attached to your car keys. Button slide cover to protect buttons from accidental unplanned operation.

INSTRUCTIONS:

For Clear code

1. Press button A&B at the same time, in about 2 seconds the LED light will flash 3 times and then go out.
2. Release button B at the same time, the button A continues to hold, don’t release.
3. Press button B for 3 times, then you can see the LED light will flash rapidly and continuously (button A is still holding) which indicates that the code has been cleaned up.
4. Release the button A and now you have successfully cleared the code.

For Cloning

1. Take the original remote control in one hand and Clone Remote Control on the other. Keep the two remote controls as close as possible.
2. Press the first keys of the two remote controls all together and you should see the LED light will flash 2 times and then slowly flash for 3 times.
3.  You have now successfully cloned that button now use the same method to copy the rest of the keys.

SPECIFICATIONS

• Powered by 1 x 27A battery (included)
• Compatible chips: 2262, 2260, 5026, 5326, 5326 – 3, 5326 – 4, FP527, PT2240, EV1527, HT6010, HT6014, HT12E, HT640, HT680, PLC168, SMC series, 9XX, PT2292, 12L – 4SC, HT6026, UM3750AM, etc.
• Compatible Crystal Frequency: AMERICAN 315 MHZ / OTHER COUNTRIES 433 MHZ
